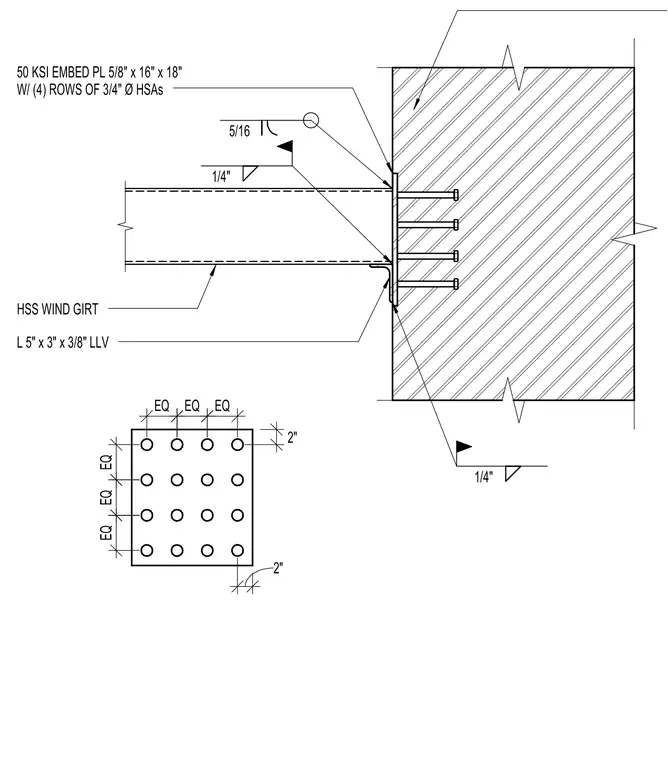

A hollow structural section wind girt connects to a concrete wall using a fifty KSI embed plate measuring five-eighths by sixteen by eighteen inches. The embed plate is anchored with four rows of three-quarter inch diameter headed stud anchors. An angle measuring five by three by three-eighths inches connects the girt bottom flange. Fillet welds of one-quarter and five-sixteenth inch sizes secure the steel assembly.
HSS WIND GIRT 50 KSI EMBED PL 5/8" x 16" x 18" W/ (4) ROWS OF 3/4" Ø HSAs L 5" x 3" x 3/8" LLV EQ EQ EQ EQ EQ EQ 2" 2" 1/4" 5/16 1/4"
