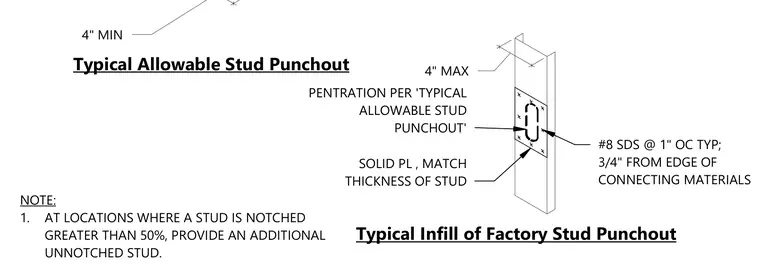

Cold-formed steel stud webs feature allowable punchouts with a maximum four-inch dimension and specific end distance clearances. When stud webs are notched or require infill, a solid plate matching the thickness of the stud is fastened using number eight self-drilling screws spaced at one inch on center with a three-quarter-inch edge distance. Locations where a stud is notched greater than fifty percent require an additional unnotched stud.
4" MIN 1 1/2" MAX Typical Allowable Stud Punchout Typical Infill of Factory Stud Punchout 4" MAX SOLID PL , MATCH THICKNESS OF STUD PENTRATION PER 'TYPICAL ALLOWABLE STUD PUNCHOUT' #8 SDS @ 1" OC TYP; 3/4" FROM EDGE OF CONNECTING MATERIALS NOTE: 1. AT LOCATIONS WHERE A STUD IS NOTCHED GREATER THAN 50%, PROVIDE AN ADDITIONAL UNNOTCHED STUD.
