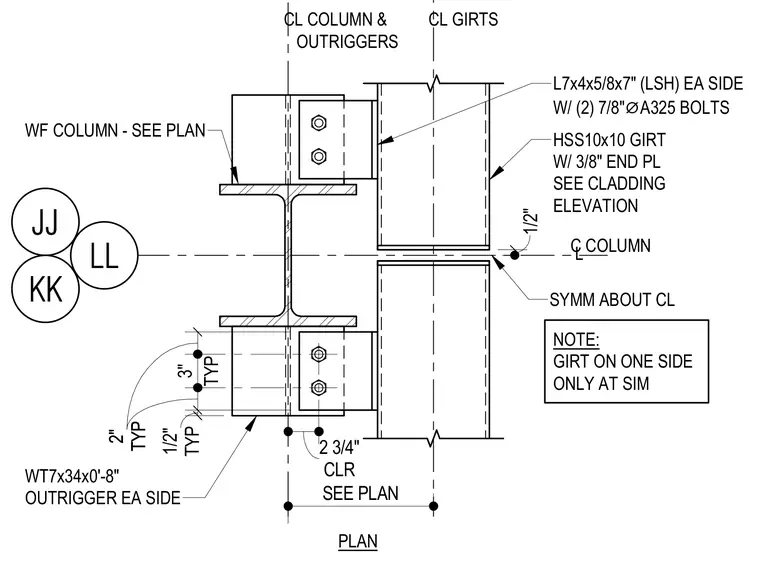

An HSS10x10 girt connects to a wide flange column flange using WT7x34 outriggers on each side. The outriggers feature L7x4x5/8 angles fastened with two 7/8-inch diameter A325 bolts on each side. The girt incorporates a 3/8-inch end plate and maintains a symmetrical arrangement about the column centerline. A note indicates that the girt is on one side only at similar conditions.
C COLUMN L L7x4x5/8x7" (LSH) EA SIDE W/ (2) 7/8" ⌀ A325 BOLTS PLAN HSS10x10 GIRT W/ 3/8" END PL SEE CLADDING ELEVATION SYMM ABOUT CL WF COLUMN - SEE PLAN TYP 1/2" TYP 2" TYP 3" TYP 2" CL COLUMN & OUTRIGGERS CL GIRTS WT7x34x0'-8" OUTRIGGER EA SIDE SEE PLAN LL CLR 2 3/4" JJ KK 1/2" NOTE: GIRT ON ONE SIDE ONLY AT SIM
