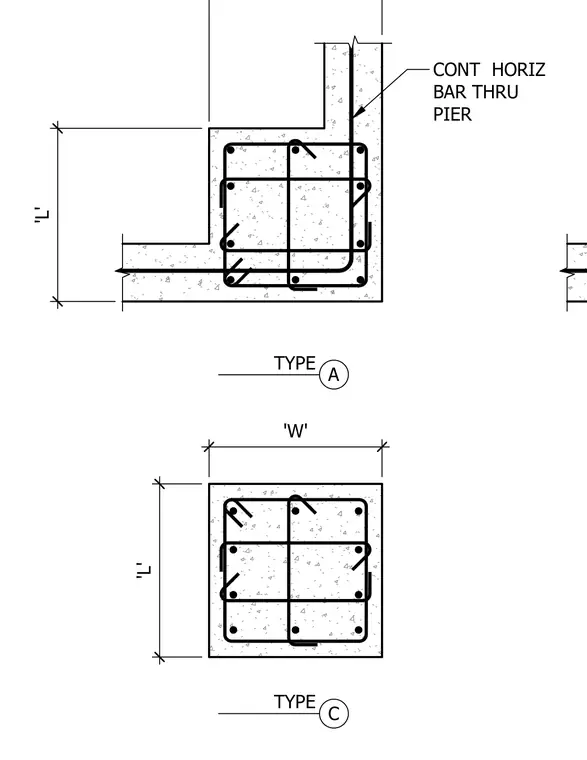

Reinforced concrete pier cross-sections show internal vertical bars enclosed by rectangular ties with hooked ends. Continuous horizontal bars pass through the pier section as detailed in the callout. The concrete pier types A and C include dimensioned widths and lengths indicated by variables W and L.
