Structural · S-EKNM7

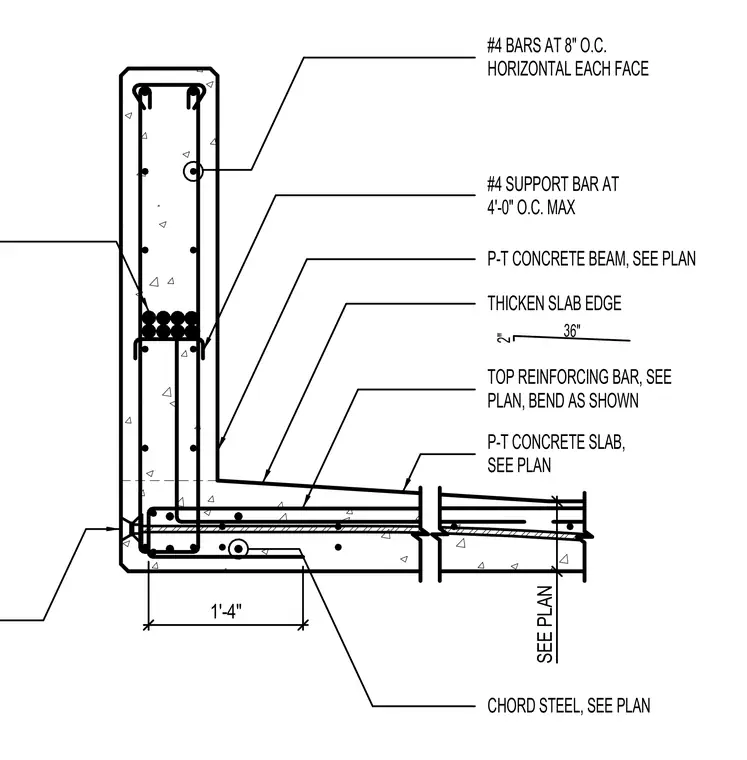

Typical Edge of Slab at Upturned Concrete Beam

Materials

Elements

About this detail

An edge of a post-tensioned concrete slab transitions into an upturned post-tensioned concrete beam. The slab edge is thickened by two inches over a thirty-six-inch zone, with top reinforcing bars bent as shown per plan. The upturned beam includes number four horizontal bars at eight inches on center on each face, along with number four support bars spaced at four feet on center maximum. Chord steel is positioned within the slab assembly as detailed on structural plans.
