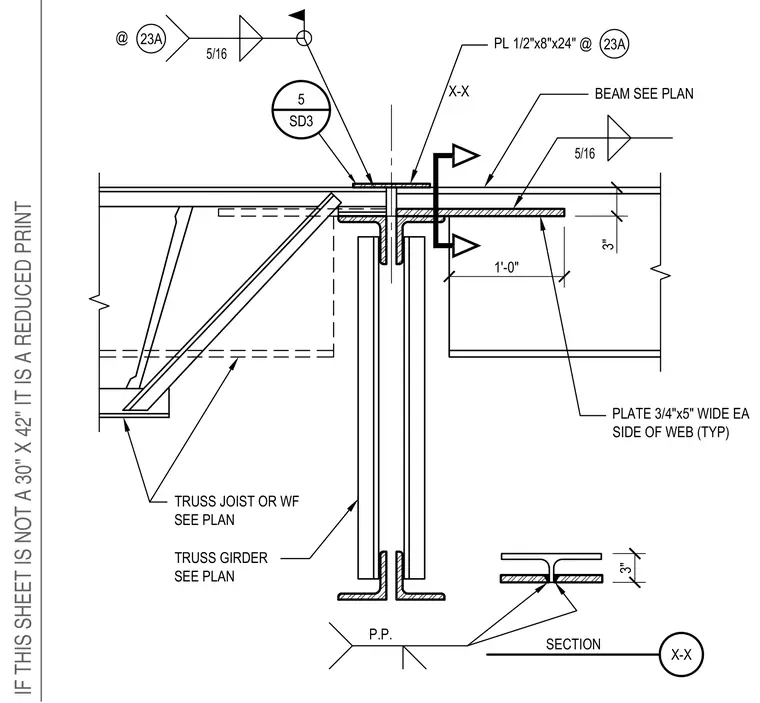

A structural steel connection joins a framing beam and a truss joist or wide flange member to a supporting truss girder. A 3/4 inch by 5 inch plate is welded to each side of the beam web, extending one foot onto the support. A 1/2 inch by 8 inch by 24 inch plate ties the assembly together at grid line 23A with five-sixteenths inch fillet welds. A cross section X-X details the profile and spacing of the connected elements.
BEAM SEE PLAN 1'-0" PLATE 3/4"x5" WIDE EA SIDE OF WEB (TYP) 3" TRUSS JOIST OR WF SEE PLAN TRUSS GIRDER SEE PLAN 5/16 5 SD3 PL 1/2"x8"x24" @ 23A 5/16 @ 23A X-X X-X SECTION 3" P.P.
