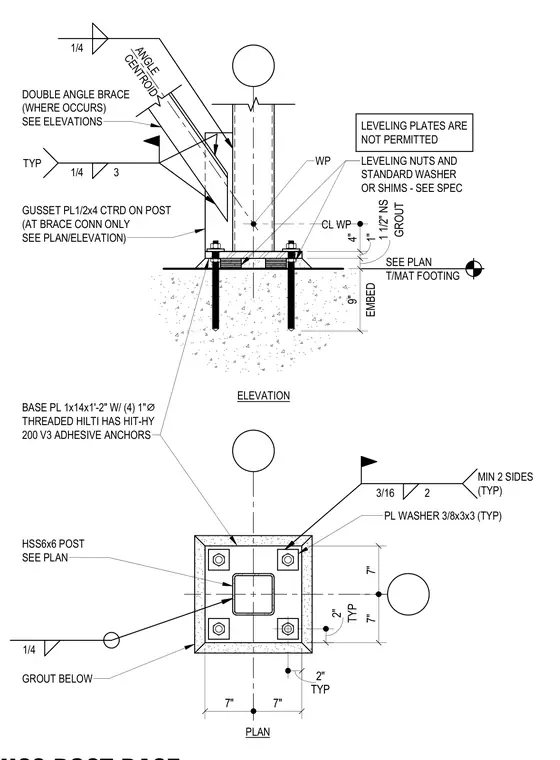

An HSS6x6 structural steel post bears on a base plate measuring 1x14x1'-2" secured by four 1-inch diameter Hilti HAS HIT-HY 200 V3 adhesive anchor bolts with nine inches of embedment into a concrete footing. Leveling nuts and standard washers or shims are provided beneath the base plate per specifications, while leveling plates are expressly prohibited. A grout pad of one and one-half inches is placed below the HSS post. A half-inch thick gusset plate is centered on the post and welded to receive a double angle brace where required by elevations, utilizing quarter-inch fillet welds on two sides with a three-inch length. Three-eighths by three by three-inch plate washers are provided at the anchor bolts.
LEVELING NUTS AND STANDARD WASHER OR SHIMS - SEE SPEC LEVELING PLATES ARE NOT PERMITTED 7" 7" 7" 7" PLAN ELEVATION 1/4 EMBED 9" GROUT 1 1/2" NS 1" 4" CL WP WP TYP 2" 3/16 2 MIN 2 SIDES (TYP) PL WASHER 3/8x3x3 (TYP) TYP 2" GROUT BELOW HSS6x6 POST SEE PLAN BASE PL 1x14x1'-2" W/ (4) 1" ⌀ THREADED HILTI HAS HIT-HY 200 V3 ADHESIVE ANCHORS ANGLE CENTROID 1/4 1/4 3 TYP GUSSET PL1/2x4 CTRD ON POST (AT BRACE CONN ONLY SEE PLAN/ELEVATION) DOUBLE ANGLE BRACE (WHERE OCCURS) SEE ELEVATIONS SEE PLAN T/MAT FOOTING
