Cold-formed steel box studs bear on a sixteen-gauge bottom track at the edge of a concrete slab or curb. Fasteners are specified with four each side per stud, and specific spacing patterns including one at twelve inches typically and at six inches at both ends. Power driven fasteners require a minimum penetration of one and one-quarter inches. Metal stud and track types are referenced to wall sections and schedules, with supplementary sections detailing the stud configuration.

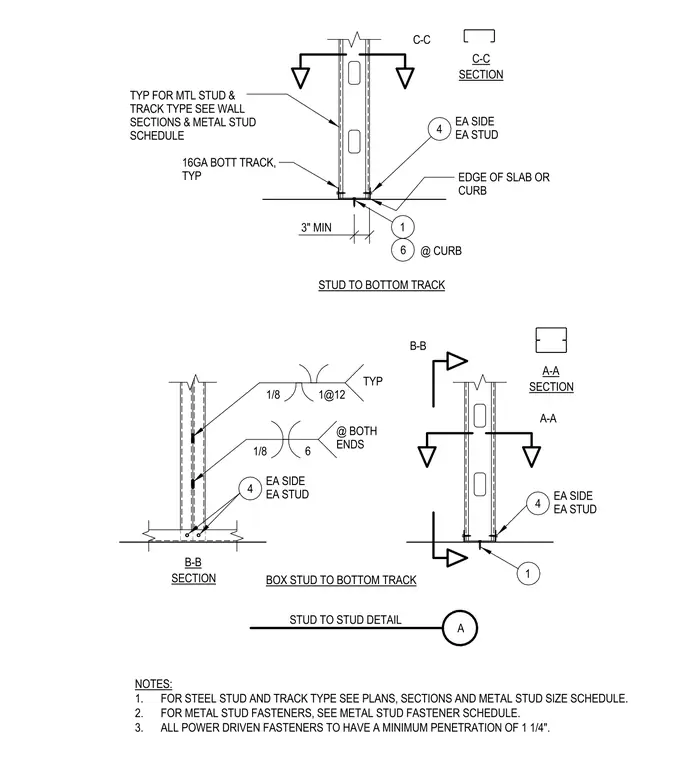

3" MIN STUD TO STUD DETAIL A BOX STUD TO BOTTOM TRACK B-B SECTION A-A SECTION STUD TO BOTTOM TRACK C-C SECTION NOTES: 1. FOR STEEL STUD AND TRACK TYPE SEE PLANS, SECTIONS AND METAL STUD SIZE SCHEDULE. 2. FOR METAL STUD FASTENERS, SEE METAL STUD FASTENER SCHEDULE. 3. ALL POWER DRIVEN FASTENERS TO HAVE A MINIMUM PENETRATION OF 1 1/4". EA SIDE EA STUD EA SIDE EA STUD EDGE OF SLAB OR CURB TYP FOR MTL STUD & TRACK TYPE SEE WALL SECTIONS & METAL STUD SCHEDULE @ CURB 16GA BOTT TRACK, TYP EA SIDE EA STUD TYP 1@12 1/8 @ BOTH ENDS 6 1/8 1 4 4 4 6 1 C-C A-A B-B
