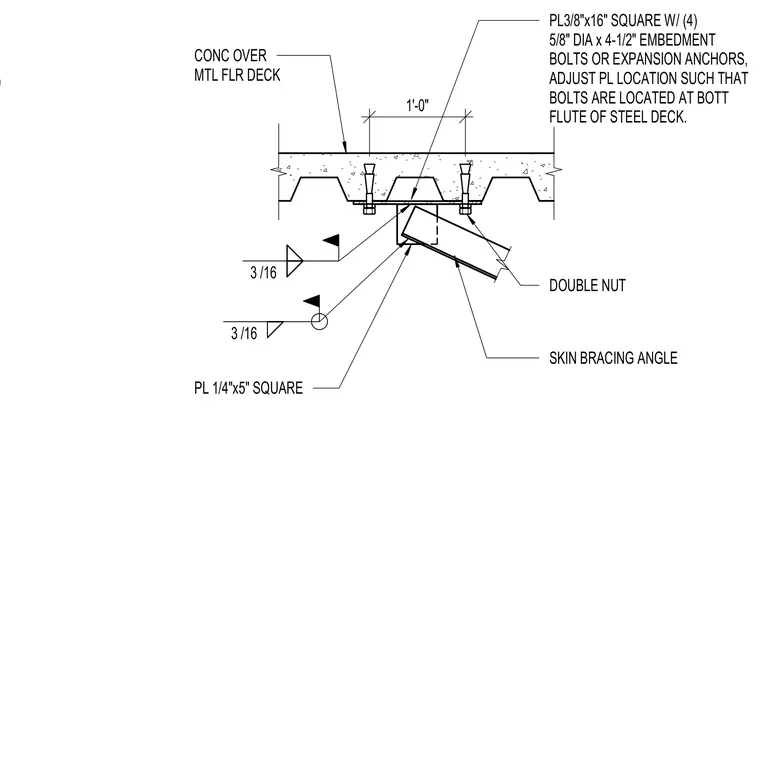

A skin bracing angle connects to a concrete-filled metal floor deck using a three-eighths-inch by sixteen-inch square plate secured by four five-eighths-inch diameter by four-and-a-half-inch embedment bolts or expansion anchors with double nuts. The plate location is adjusted so the anchors align with the bottom flute of the steel deck. A one-quarter-inch by five-inch square plate transitions to the bracing angle, welded with three-sixteenths-inch fillet welds.
WALL (WHERE OCCURS) 1'-0" 3 /16 3 /16 PL 1/4"x5" SQUARE SKIN BRACING ANGLE PL3/8"x16" SQUARE W/ (4) 5/8" DIA x 4-1/2" EMBEDMENT BOLTS OR EXPANSION ANCHORS, ADJUST PL LOCATION SUCH THAT BOLTS ARE LOCATED AT BOTT FLUTE OF STEEL DECK. CONC OVER MTL FLR DECK DOUBLE NUT
