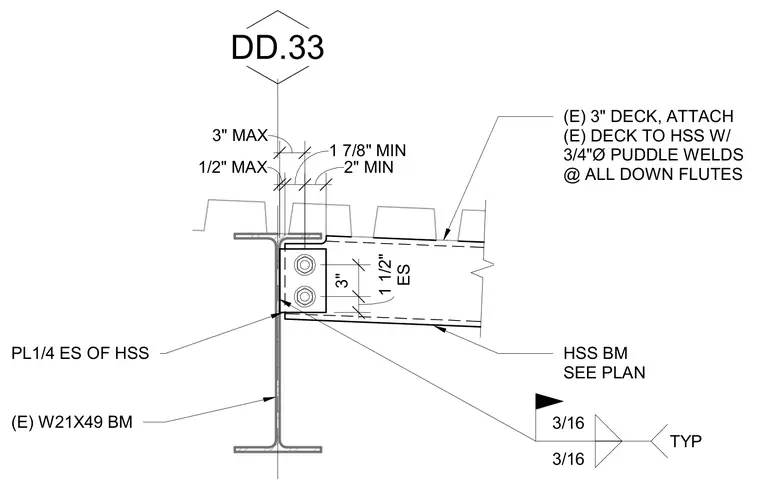

An HSS beam connects to an existing W21X49 wide flange beam using a quarter-inch plate on each side of the HSS secured with three-sixteenths fillet welds. An existing three-inch metal deck bears across the assembly and attaches to the HSS with three-quarter-inch diameter puddle welds at all down flutes. Dimensioning indicates specific clearance limits and edge distances for the framing alignment.
DD.33 3" ES 1 1/2" 3" MAX 1/2" MAX 1 7/8" MIN 2" MIN (E) 3" DECK, ATTACH (E) DECK TO HSS W/ 3/4"Ø PUDDLE WELDS @ ALL DOWN FLUTES PL1/4 ES OF HSS (E) W21X49 BM 3/16 3/16 TYP HSS BM SEE PLAN
