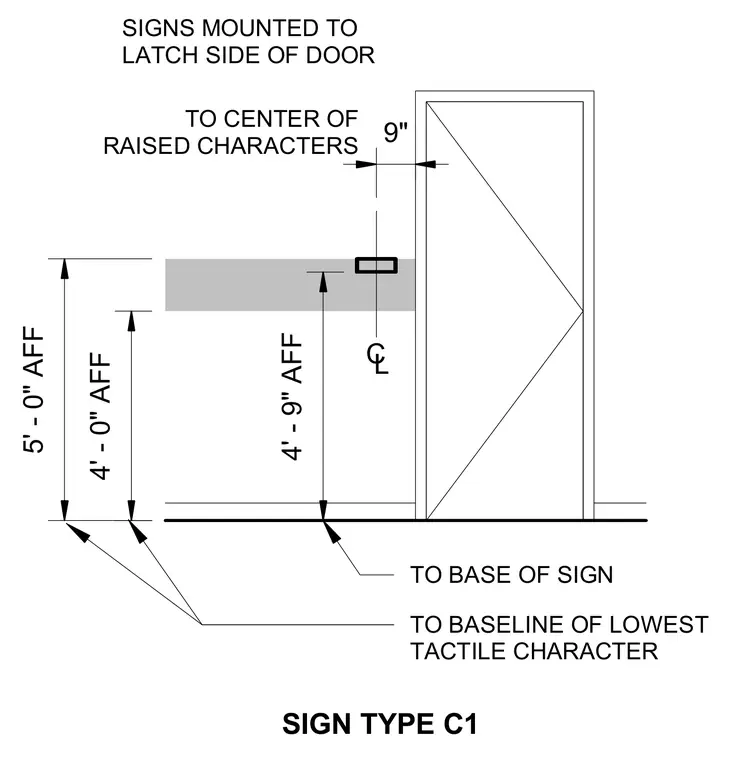

Sign Type C1 is mounted to the latch side of a door with specific vertical and horizontal clearances above the finished floor. The baseline of the lowest tactile character sits four feet above the finished floor, and the top of the sign reaches five feet above the finished floor. The centerline of the raised characters is positioned nine inches from the door frame, with the sign base located four feet nine inches above the finished floor.
4' - 0" AFF 5' - 0" AFF SIGNS MOUNTED TO LATCH SIDE OF DOOR TO BASE OF SIGN TO BASELINE OF LOWEST TACTILE CHARACTER SIGN TYPE C1 4' - 9" AFF CL 9" TO CENTER OF RAISED CHARACTERS
