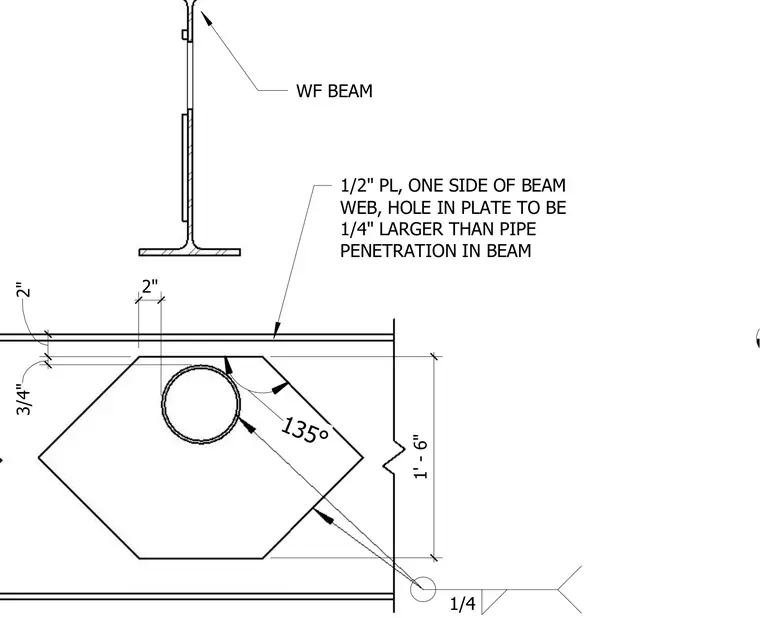

A half-inch thick steel plate is welded to one side of the wide flange beam web to reinforce a pipe penetration. The reinforcement plate features a cut-out hole that is sized one-quarter inch larger than the pipe penetration in the beam. A one-quarter inch fillet weld attaches the plate to the beam web. The plate has a height of one foot six inches with angled edges meeting at one hundred thirty-degree corners.
3/4" 2" 2" 1' - 6" 135° WF BEAM 1/2" PL, ONE SIDE OF BEAM WEB, HOLE IN PLATE TO BE 1/4" LARGER THAN PIPE PENETRATION IN BEAM 1/4
