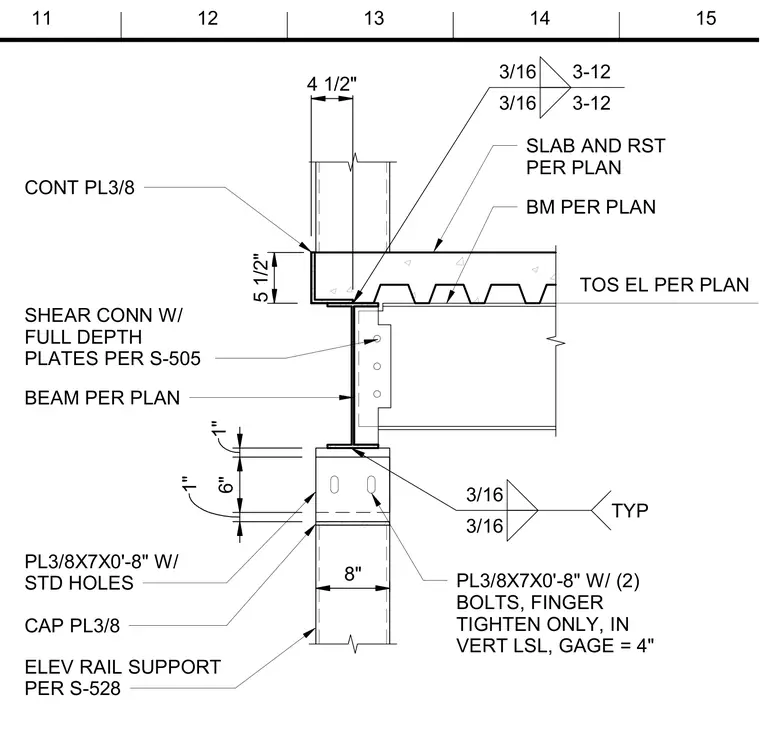

An elevator rail support is anchored to a vertical laminated strand lumber timber column using a 3/8-inch by 7-inch by 8-inch plate secured with two bolts tightened finger-tight only with a 4-inch gauge. A 3/8-inch cap plate sits atop the timber post with typical 3/16-inch fillet welds. A structural steel beam connects above per plan, featuring full-depth shear connection plates per sheet S-505. A continuous 3/8-inch plate and a concrete slab with metal deck bear on the beam assembly.
ELEV RAIL SUPPORT PER S-528 CAP PL3/8 PL3/8X7X0'-8" W/ STD HOLES PL3/8X7X0'-8" W/ (2) BOLTS, FINGER TIGHTEN ONLY, IN VERT LSL, GAGE = 4" 3/16 3/16 TYP 8" 1" 6" 1" CONT PL3/8 BM PER PLAN SLAB AND RST PER PLAN SHEAR CONN W/ FULL DEPTH PLATES PER S-505 BEAM PER PLAN TOS EL PER PLAN 116' - 2 1/2" 5 1/2" 3/16 3-12 3/16 3-12 4 1/2" 11 13 15 12 14
