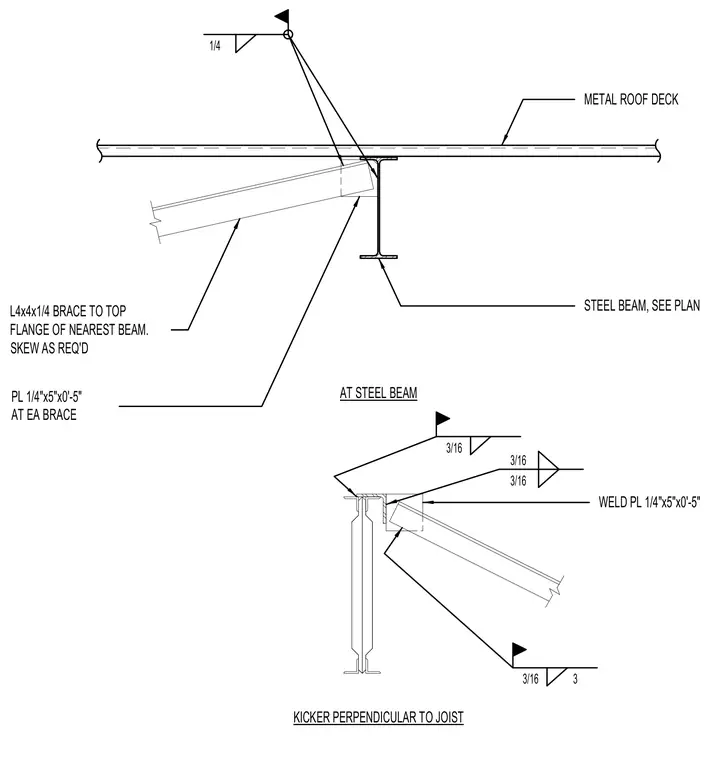

An L4x4x1/4 angle brace connects to the top flange of the nearest steel beam below a metal roof deck. A one-quarter-inch by five-inch by five-inch plate is welded at each brace using three-sixteenth-inch fillet welds. The brace is skewed as required to meet the framing geometry perpendicular to the joist.
METAL ROOF DECK STEEL BEAM, SEE PLAN PL 1/4"x5"x0'-5" 1/4 AT EA BRACE AT STEEL BEAM L4x4x1/4 BRACE TO TOP FLANGE OF NEAREST BEAM. SKEW AS REQ'D 3/16 3/16 WELD PL 1/4"x5"x0'-5" KICKER PERPENDICULAR TO JOIST 3/16 3 3/16
