Typical Steel Deck Support and Edge Conditions

Materials

Elements

About this detail

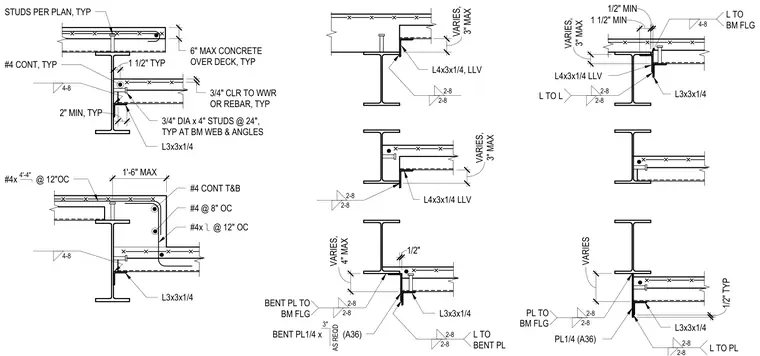

Multiple conditions for steel deck support on structural steel framing. The concrete slab over metal deck features three-quarter-inch diameter by four-inch studs at twenty-four inches on center, with three-quarter-inch clear cover to welded wire reinforcement or rebar. Framing members utilize structural angles such as L4x3x1/4 and L3x3x1/4, along with A36 bent plates, connected via fillet welds. Reinforcing steel includes continuous number four bars top and bottom, number four bars at eight inches on center, and transverse number four bars at twelve inches on center.
