Structural · S-EK3BB

Welded Top Beam Flange to Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection Rebar Splice / Development Expansion / Slip Connection

About this detail

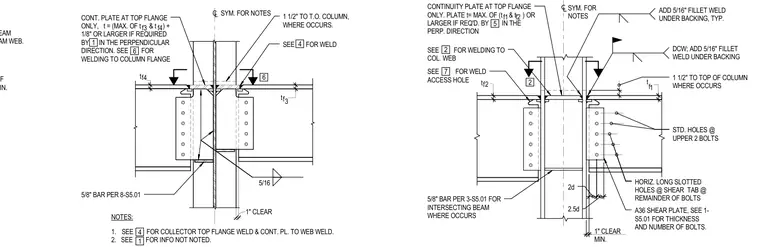

A structural steel moment connection between floor beams and a steel column incorporates top flange continuity plates and bolted shear tabs. The connection features a continuity plate at the top flange sized per the flange thicknesses, welded to the column web and flange with five-sixteenth-inch fillet welds under backing. Shear tabs utilize standard holes at the upper two bolt locations and horizontal long slotted holes for the remainder of the bolts. Additional elements include a five-eighths-inch bar for intersecting beams, weld access holes, and splice plates sized to the beam width minus one and a half inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
