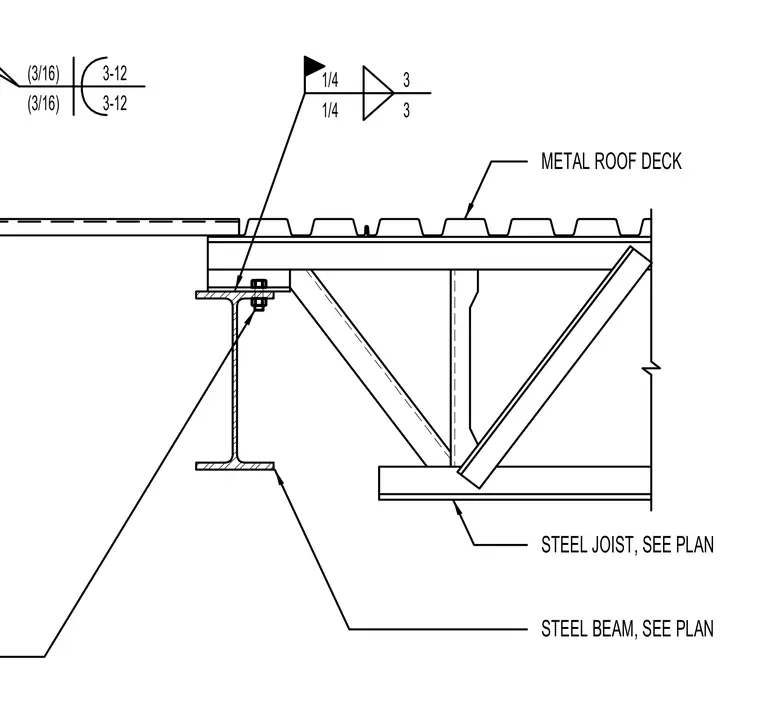

An open-web steel joist bears directly on the top flange of a supporting steel beam, sized per plan. A metal roof deck rests across the top chord of the joist. Three-sixteenth-inch fillet welds secure the joist bearing seat to the beam flange.
1/4 1/4 3 3 METAL ROOF DECK STEEL JOIST, SEE PLAN STEEL BEAM, SEE PLAN (3/16) (3/16) 3-12 3-12
