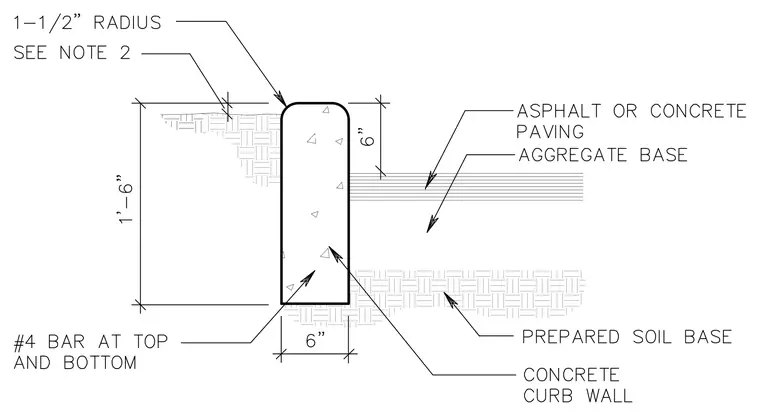

This concrete curb wall measures six inches wide by one foot six inches high, featuring a one and one-half inch radius at the top edge. Reinforcement consists of number four bars placed at the top and bottom of the wall section. The exterior abuts an aggregate base and prepared soil base beneath asphalt or concrete paving. The top portion of the wall extends six inches above the adjacent paving surface.
