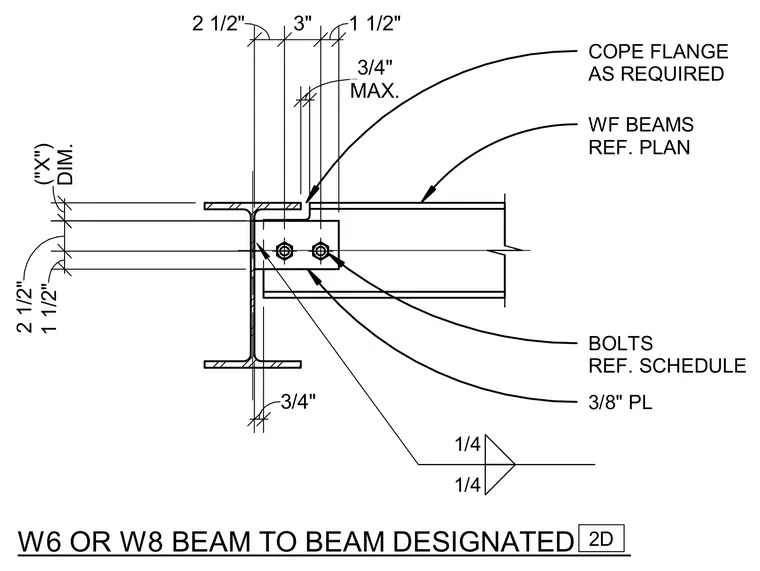

A wide-flange supported beam connects to a supporting wide-flange beam using a three-eighths-inch thick connection plate welded with quarter-inch fillet welds and secured with bolts sized per schedule. The supported beam flange is coped as required with a maximum clearance of three-quarters of an inch. Dimensional callouts establish bolt spacing at two and one-half inches vertically, with horizontal gauges of two and one-half inches, three inches, and one and one-half inches.
W6 OR W8 BEAM TO BEAM DESIGNATED COPE FLANGE AS REQUIRED WF BEAMS REF. PLAN 3/8" PL 2D DIM. ("X") MAX. 3/4" 1/4 1/4 2 1/2" 3" 1 1/2" 2 1/2" 1 1/2" 3/4" BOLTS REF. SCHEDULE
