A wide flange beam or channel frames into a hollow structural section post or hanger using a continuous shear plate slotted through the column. Bolts and the shear tab size are determined per the non-moment beam connection schedule. A one-half-inch cap plate is welded to the top of the post where required, and quarter-inch fillet welds secure the connection.

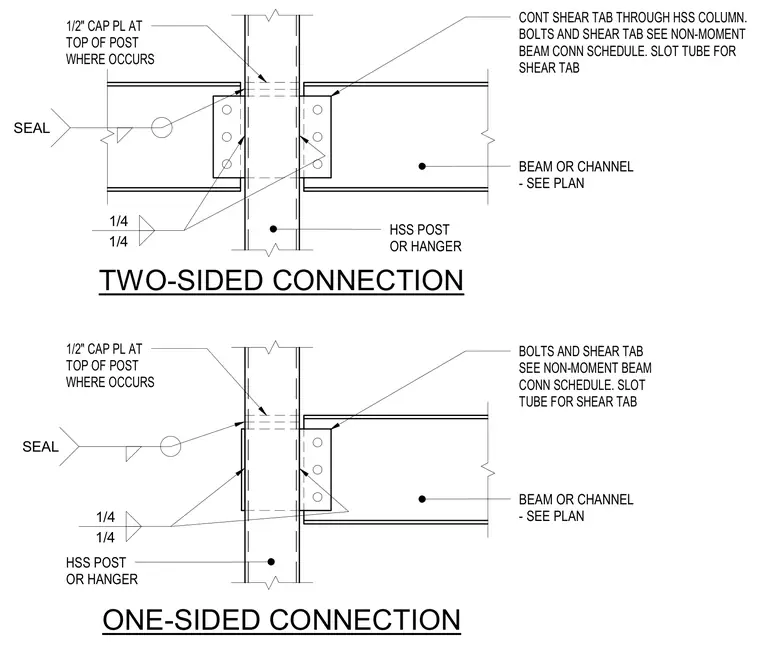

1/2" CAP PL AT TOP OF POST WHERE OCCURS BEAM OR CHANNEL - SEE PLAN CONT SHEAR TAB THROUGH HSS COLUMN. BOLTS AND SHEAR TAB SEE NON-MOMENT BEAM CONN SCHEDULE. SLOT TUBE FOR SHEAR TAB 1/4 1/4 SEAL BEAM OR CHANNEL - SEE PLAN BOLTS AND SHEAR TAB SEE NON-MOMENT BEAM CONN SCHEDULE. SLOT TUBE FOR SHEAR TAB HSS POST OR HANGER 1/4 1/4 SEAL ONE-SIDED CONNECTION TWO-SIDED CONNECTION HSS POST OR HANGER 1/2" CAP PL AT TOP OF POST WHERE OCCURS
