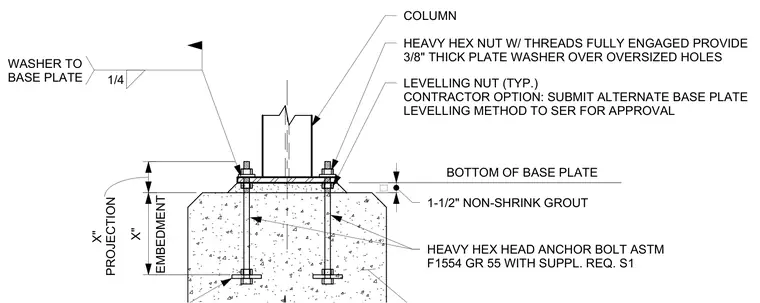

A structural steel column rests on a base plate supported by a concrete foundation with one and a half inches of non-shrink grout beneath. Heavy hex head anchor bolts conforming to ASTM F1554 Grade 55 with supplementary requirement S1 extend up through oversized holes in the base plate. A three-eighths-inch thick plate washer is placed over the oversized holes beneath a heavy hex nut with threads fully engaged. Leveling nuts are provided typically beneath the base plate, with a contractor option to submit an alternate base plate leveling method to the structural engineer of record for approval. A quarter-inch fillet weld secures the column to the base plate.
HEAVY HEX NUT W/ THREADS FULLY ENGAGED PROVIDE 3/8" THICK PLATE WASHER OVER OVERSIZED HOLES HEAVY HEX HEAD ANCHOR BOLT ASTM F1554 GR 55 WITH SUPPL. REQ. S1 BOTTOM OF BASE PLATE X" PROJECTION EMBEDMENT X" COLUMN 1-1/2" NON-SHRINK GROUT LEVELLING NUT (TYP.) CONTRACTOR OPTION: SUBMIT ALTERNATE BASE PLATE LEVELLING METHOD TO SER FOR APPROVAL 1/4 WASHER TO BASE PLATE
