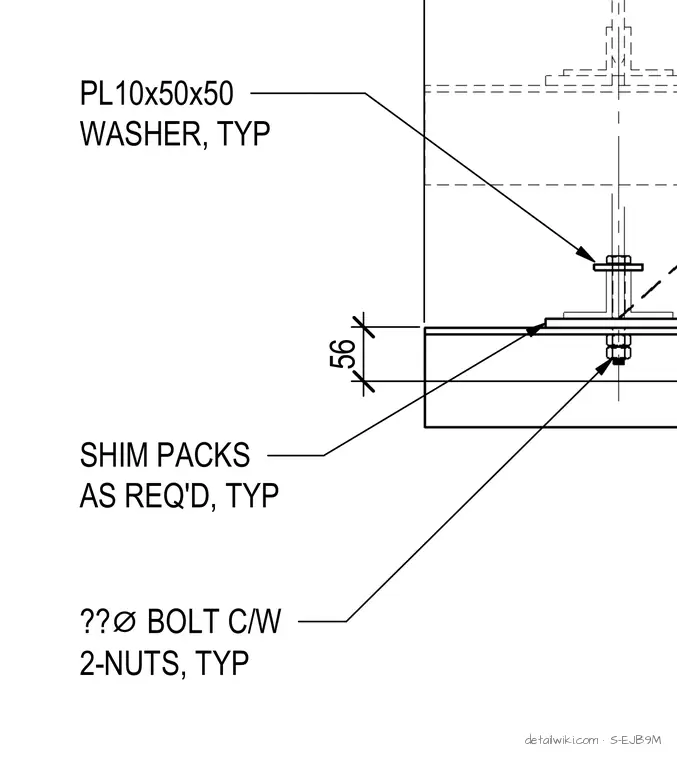

The assembly features steel components secured with bolts and nuts, including plate washers and adjustable shim packs placed to accommodate tolerances or ensure level alignment. Callouts specify standard plate washer dimensions, shim packs as required, and bolted connections complete with double nuts.
Text on the drawing
56 SHIM PACKS AS REQ'D, TYP PL10x50x50 WASHER, TYP ?? ⌀ BOLT C/W 2-NUTS, TYP
