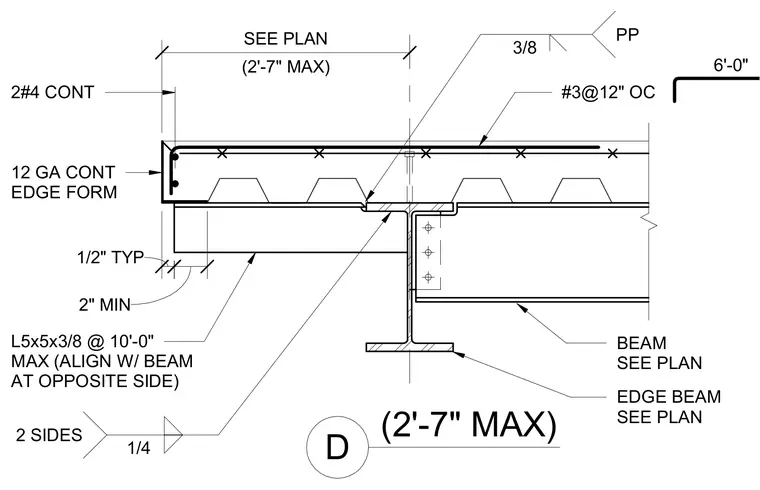

A concrete floor slab bears on a structural steel edge beam and supporting beam sized per plan, featuring a 12 gauge continuous metal edge form with two number four continuous reinforcing bars. Transverse reinforcement consists of number three bars spaced at twelve inches on center. An L5x5x3/8 angle spaced at ten feet maximum aligns with the beam on the opposite side and connects with a 1/4-inch fillet weld on two sides. A 3/8-inch pour stop plate secures to the top flange with a 1/4-inch weld.
(2'-7" MAX) D 6'-0" 2#4 CONT L5x5x3/8 @ 10'-0" MAX (ALIGN W/ BEAM AT OPPOSITE SIDE) 12 GA CONT EDGE FORM EDGE BEAM SEE PLAN BEAM SEE PLAN #3@12" OC (2'-7" MAX) SEE PLAN 3/8 PP 1/2" TYP 1/4 2 SIDES 2" MIN
