This cold-formed steel slip and deflection track assembly accommodates vertical movement using a 625T200-54 deflection track combined with a 600T300-54 deep leg inside track. The inside dimension of the outer track is sized one-quarter inch greater than the stud depth to permit unhindered deflection. Metal studs are fastened using one number 10-16 self-drilling screw per stud flange, maintaining a one-half inch clearance from the screw to the track leg and a one-half inch vertical gap. Stud blocking is required within six inches of the deflection track, and sheathing must be fastened directly into this blocking rather than the deflection track. An isometric view shows the nested track configuration adjacent to full-height windows.

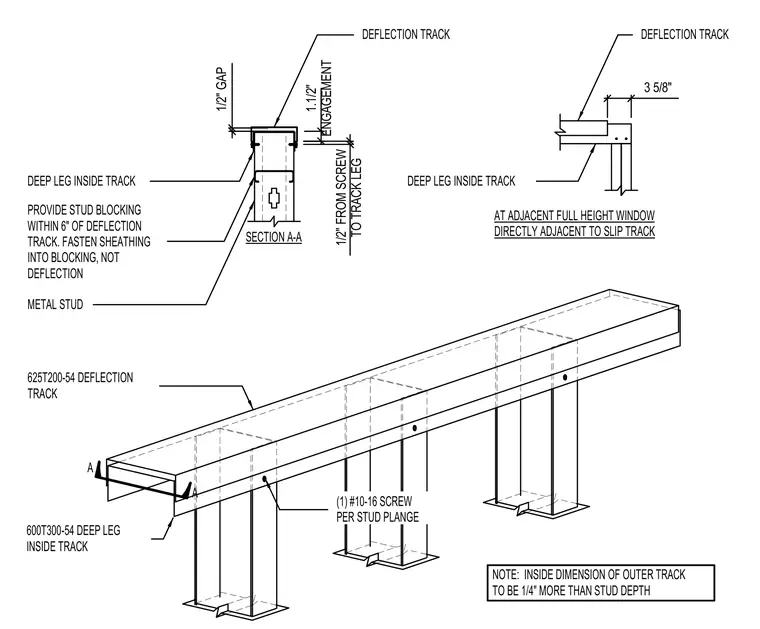

SECTION A-A METAL STUD 625T200-54 DEFLECTION TRACK 600T300-54 DEEP LEG INSIDE TRACK (1) #10-16 SCREW PER STUD PLANGE A AT ADJACENT FULL HEIGHT WINDOW DIRECTLY ADJACENT TO SLIP TRACK A NOTE: INSIDE DIMENSION OF OUTER TRACK TO BE 1/4" MORE THAN STUD DEPTH DEEP LEG INSIDE TRACK DEEP LEG INSIDE TRACK DEFLECTION TRACK DEFLECTION TRACK PROVIDE STUD BLOCKING WITHIN 6" OF DEFLECTION TRACK. FASTEN SHEATHING INTO BLOCKING, NOT DEFLECTION 1.1/2" ENGAGEMENT 1/2" FROM SCREW TO TRACK LEG 1/2" GAP 3 5/8"
