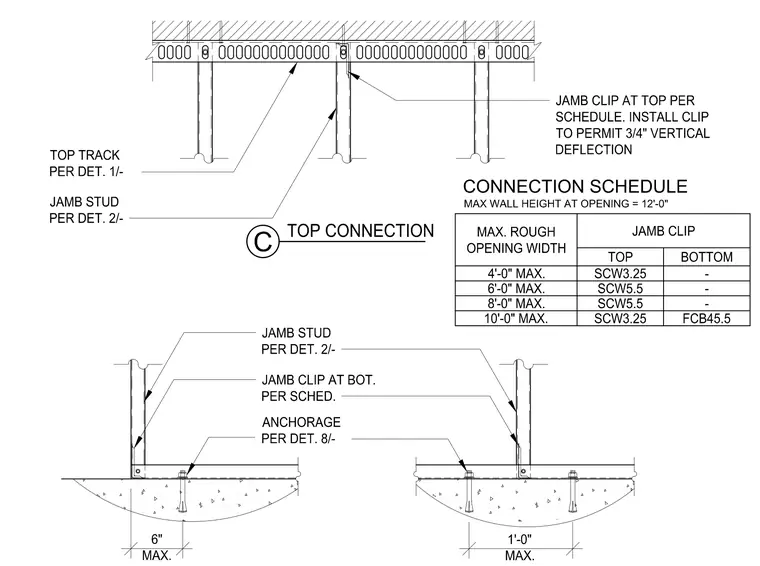

Cold-formed steel jamb studs anchor to a concrete slab at the base and connect to a top track at the head. The top connection utilizes a jamb clip installed to permit three-quarters of an inch of vertical deflection. The bottom connection features a jamb clip anchored to the slab per the specified anchorage detail. A connection schedule provides the required jamb clip model based on the maximum rough opening width, with a maximum wall height of twelve feet at the opening. Jamb studs and top tracks are sized per their respective referenced details.
