Structural · S-EHWXK

Moment Connection Details (For Non-Frames)

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate Beam-to-Column Bolted Connection

About this detail

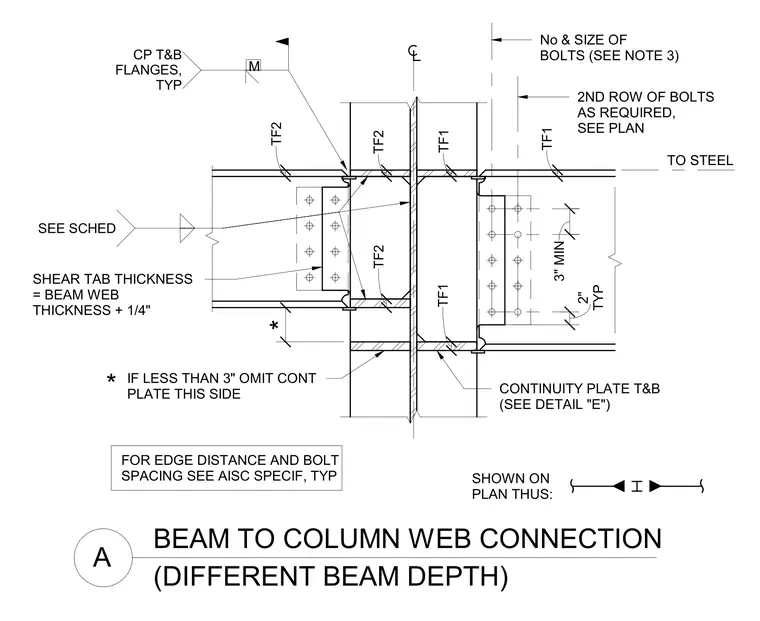

A steel beam-to-column web connection features beams of different depths framing into opposite sides of a column. Continuity plates are provided at the top and bottom flanges, welded to the column web with specified weld sizes TF1 and TF2. A shear tab connects the beam web to the column, sized equal to the beam web thickness plus one-quarter inch. Bolting requirements, edge distances, and bolt spacings comply with AISC specifications, including a typical three-inch minimum spacing and a two-inch typical dimension. A note dictates that if the dimension is less than three inches, the continuity plate is omitted on that side.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
