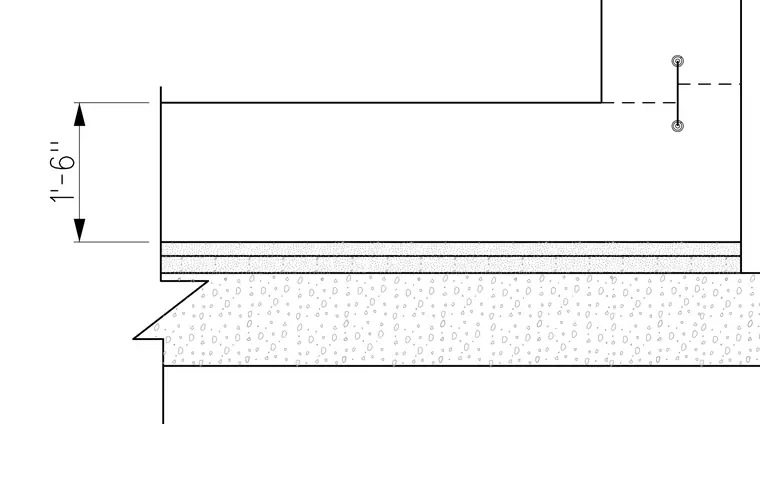

This structural section shows a concrete foundation wall supporting a slab-on-grade with a one-foot-six-inch vertical step. The assembly includes layered sub-base material beneath the concrete slab and a reinforced concrete stem wall below. Reinforcing steel is indicated within the foundation wall element. The connection maintains standard damp-proofing and subgrade separation layers.
