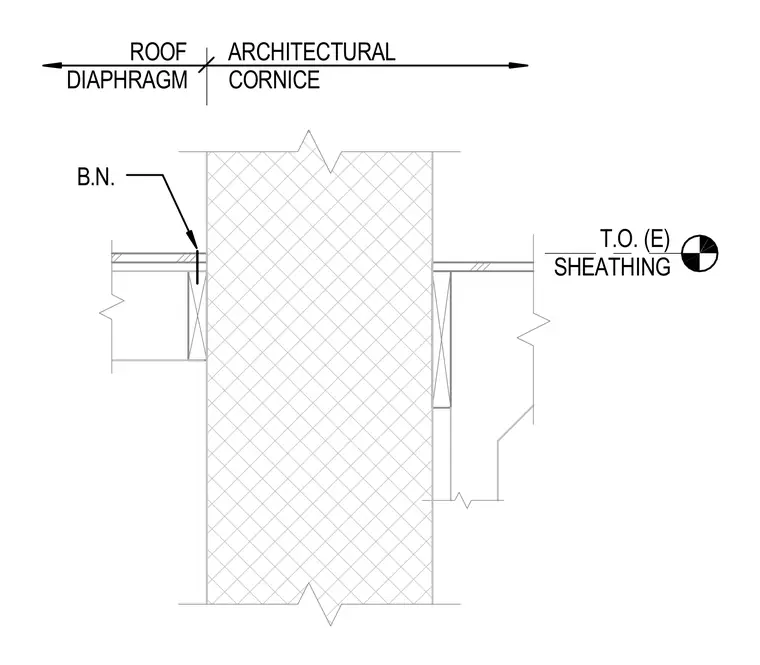

Transition between the roof diaphragm and the exterior architectural cornice. The existing sheathing aligns with the top of the existing framing, with boundaries noted at the connection interface.
ROOF DIAPHRAGM ARCHITECTURAL CORNICE T.O. (E) SHEATHING B.N.
