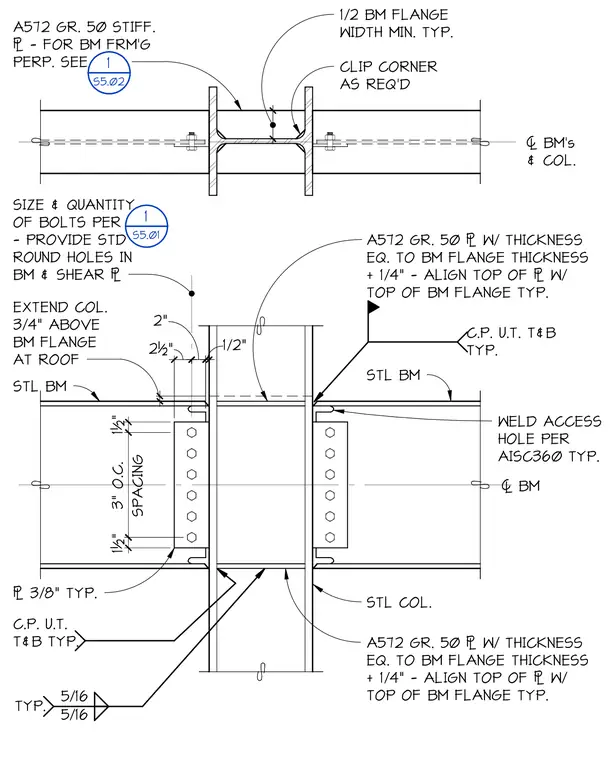

A structural steel beam connects to a steel column using an ASTM A572 Grade 50 plate matching the beam flange thickness plus one-quarter inch, aligned with the top of the beam flange. A three-eighths-inch weld access hole is provided per AISC 360 standards. Standard round holes are drilled in the beam and shear plate, with bolt sizing and quantity per schedule. Five-sixteenths fillet welds are specified typically at the connection. The steel column extends three-quarters of an inch above the beam flange at the roof.
C.P. U.T. T&B TYP. A572 GR. 50 # W/ THICKNESS EQ. TO BM FLANGE THICKNESS + 1/4" - ALIGN TOP OF # W/ TOP OF BM FLANGE TYP. STL COL. 1½" SPACING 3" O.C. 1½" A572 GR. 50 # W/ THICKNESS EQ. TO BM FLANGE THICKNESS + 1/4" - ALIGN TOP OF # W/ TOP OF BM FLANGE TYP. # 3/8" TYP. WELD ACCESS HOLE PER AISC360 TYP. C.P. U.T. T&B TYP. STL BM STL BM 1/2" 2" 2½" EXTEND COL. 3/4" ABOVE BM FLANGE AT ROOF 5/16 5/16 TYP. SIZE & QUANTITY OF BOLTS PER - PROVIDE STD ROUND HOLES IN BM & SHEAR # A572 GR. 50 STIFF. # - FOR BM FRM'G PERP. SEE 1/2 BM FLANGE WIDTH MIN. TYP. CLIP CORNER AS REQ'D . BM's & COL. . BM 1 S5.01 1 S5.02
