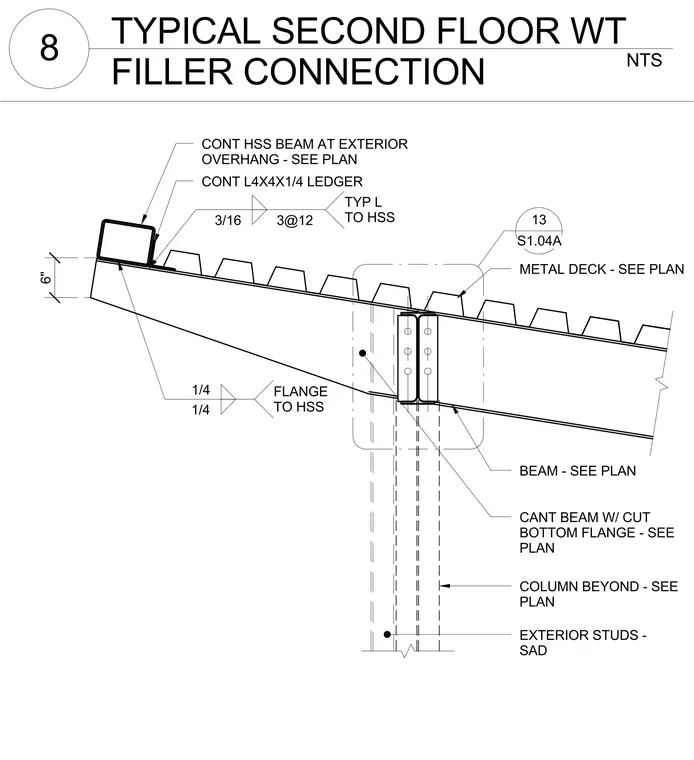

A typical second floor filler connection involves a continuous hollow structural section beam at an exterior overhang, sized per plan. A continuous four-by-four by one-quarter inch angle ledger is welded to the hollow structural section with a three-sixteenths inch weld at three inches on center. The six-inch cantilevered beam features a cut bottom flange and is welded to the hollow structural section with quarter-inch welds on the flange. Metal deck and standard structural beams are sized per plan and integrated above the column beyond.
METAL DECK - SEE PLAN CONT HSS BEAM AT EXTERIOR OVERHANG - SEE PLAN BEAM - SEE PLAN COLUMN BEYOND - SEE PLAN EXTERIOR STUDS - SAD 1/4 1/4 FLANGE TO HSS 6" CANT BEAM W/ CUT BOTTOM FLANGE - SEE PLAN S1.04A 13 CONT L4X4X1/4 LEDGER 3/16 3@12 TYP L TO HSS NTS 8 TYPICAL SECOND FLOOR WT FILLER CONNECTION
