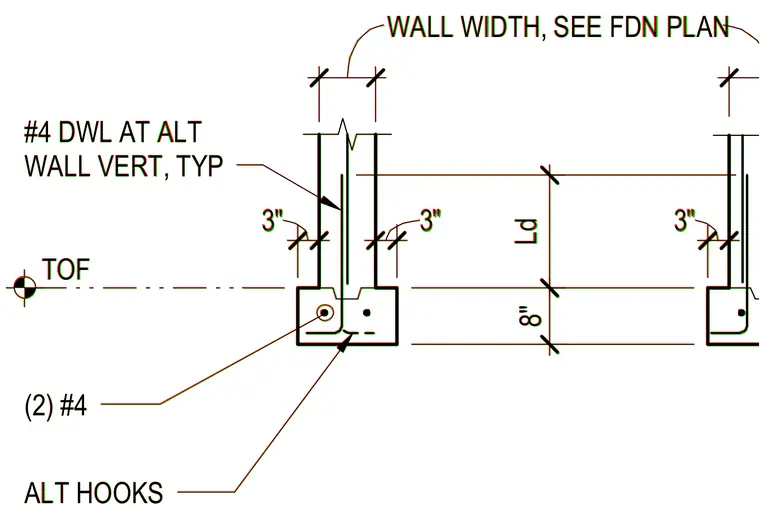

A concrete foundation footing anchors a vertical wall with number four dowels placed at alternating wall verticals typically. Two number four alternate hooks extend horizontally across the wall width as sized per foundation plan. The vertical development length Ld and bottom footing clearance are dimensioned relative to the top of footing.
TOF Ld 8" 8" 12" #4 DWL AT ALT WALL VERT, TYP (2) #4 ALT HOOKS WALL WIDTH, SEE FDN PLAN 3" 3" 3" TOF Ld 8" 8" 12" #4 DWL AT ALT WALL VERT, TYP (2) #4 ALT HOOKS WALL WIDTH, SEE FDN PLAN 3" 3" 3"
