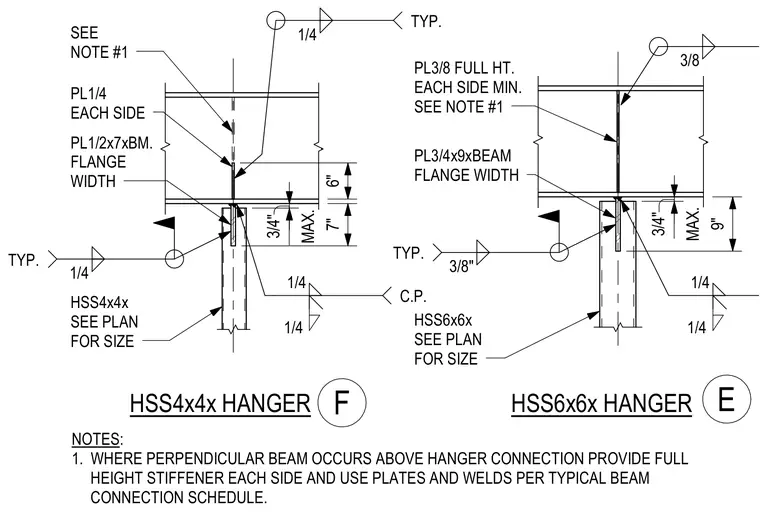

Two structural steel hanger connections illustrate hollow structural section members suspended from supporting beams with welded plate stiffeners. The first detail incorporates an HSS 4x4 hanger with a 1/2-inch by 7-inch plate matching the beam flange width, connected using 1/4-inch fillet welds and a three-eighths-inch plate on each side. The second detail shows an HSS 6x6 hanger utilizing a three-fourths-inch by 9-inch plate sized to the beam flange width, fastened with three-eighths-inch fillet welds and a three-eighths-inch full-height plate on each side. When a perpendicular beam occurs above the hanger connection, full-height stiffeners are provided on each side using plates and welds per the typical beam connection schedule.
NOTES: 1. WHERE PERPENDICULAR BEAM OCCURS ABOVE HANGER CONNECTION PROVIDE FULL HEIGHT STIFFENER EACH SIDE AND USE PLATES AND WELDS PER TYPICAL BEAM CONNECTION SCHEDULE. PL3/8 FULL HT. EACH SIDE MIN. SEE NOTE #1 PL3/4x9xBEAM FLANGE WIDTH SEE NOTE #1 PL1/4 EACH SIDE PL1/2x7xBM. FLANGE WIDTH HSS4x4x SEE PLAN FOR SIZE HSS6x6x SEE PLAN FOR SIZE HSS4x4x HANGER F HSS6x6x HANGER E 1/4 1/4 3/8" TYP. 3/8 MAX. 3/4" 9" 1/4 C.P. 1/4 1/4 TYP. 1/4 TYP. MAX. 3/4" 7" 6"
