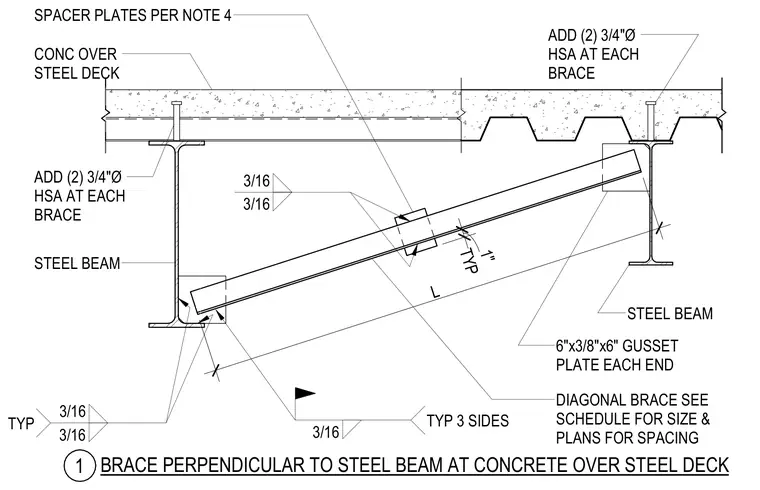

A diagonal brace frames perpendicular to a structural steel beam supporting a concrete over steel deck assembly with a six-inch by three-eighths-inch by six-inch gusset plate welded at each end. Three-sixteenths-inch fillet welds secure the gusset plates to the steel beams and brace with typical three-sided welding. Two three-quarters-inch diameter headed stud anchors are added at each brace location through the concrete slab. Spacer plates are installed per note four with a one-inch typical clearance.
STEEL BEAM STEEL BEAM CONC OVER STEEL DECK 6"x3/8"x6" GUSSET PLATE EACH END DIAGONAL BRACE SEE SCHEDULE FOR SIZE & PLANS FOR SPACING SPACER PLATES PER NOTE 4 3/16 3/16 3/16 TYP 3 SIDES 3/16 3/16 TYP L TYP 1" ADD (2) 3/4"Ø HSA AT EACH BRACE ADD (2) 3/4"Ø HSA AT EACH BRACE BRACE PERPENDICULAR TO STEEL BEAM AT CONCRETE OVER STEEL DECK 1
