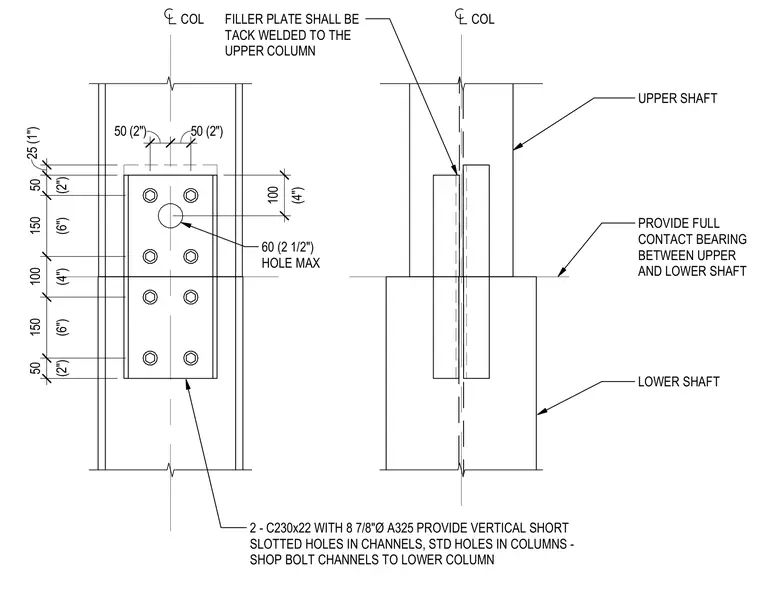

Two steel column shafts connect end-to-end with full contact bearing between the upper shaft and lower shaft. A filler plate is tack-welded to the upper column. Two C230x22 channels splice the columns with eight 7/8-inch diameter A325 bolts. Vertical short slotted holes are provided in the channels and standard holes in the columns. The channels are shop-bolted to the lower column.
COL COL 50 (2") 50 (2") 25 (1") (2") 50 (6") 150 (4") 100 (6") 150 (2") 50 (4") 100 PROVIDE FULL CONTACT BEARING BETWEEN UPPER AND LOWER SHAFT UPPER SHAFT LOWER SHAFT FILLER PLATE SHALL BE TACK WELDED TO THE UPPER COLUMN 2 - C230x22 WITH 8 7/8"Ø A325 PROVIDE VERTICAL SHORT SLOTTED HOLES IN CHANNELS, STD HOLES IN COLUMNS - SHOP BOLT CHANNELS TO LOWER COLUMN 60 (2 1/2") HOLE MAX
