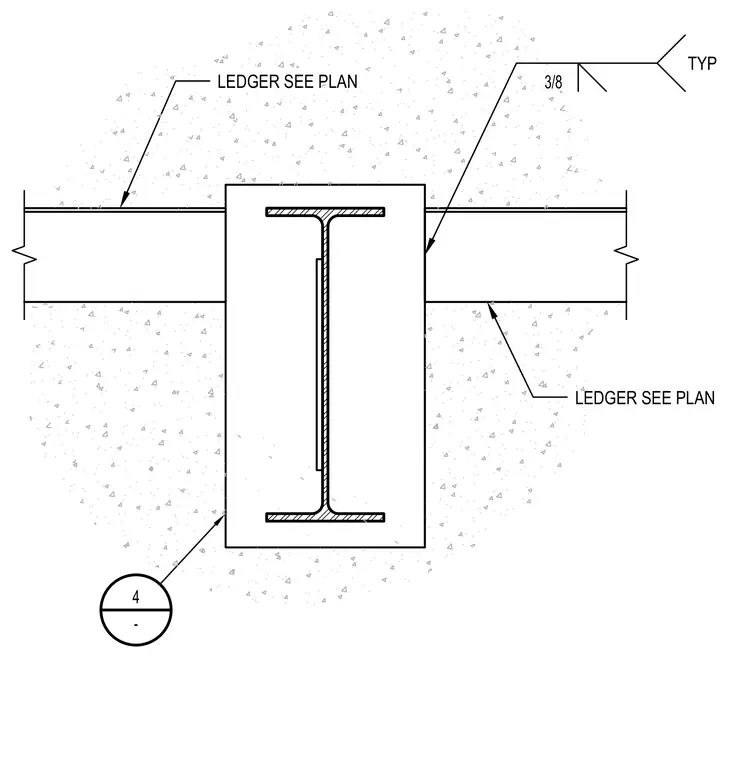

A floor ledger is framed against the flange of a wide-flange steel column embedded within concrete. The connection is secured with a three-eighths-inch fillet weld applied typically along the ledger interface. The floor ledger size and layout are specified per plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
