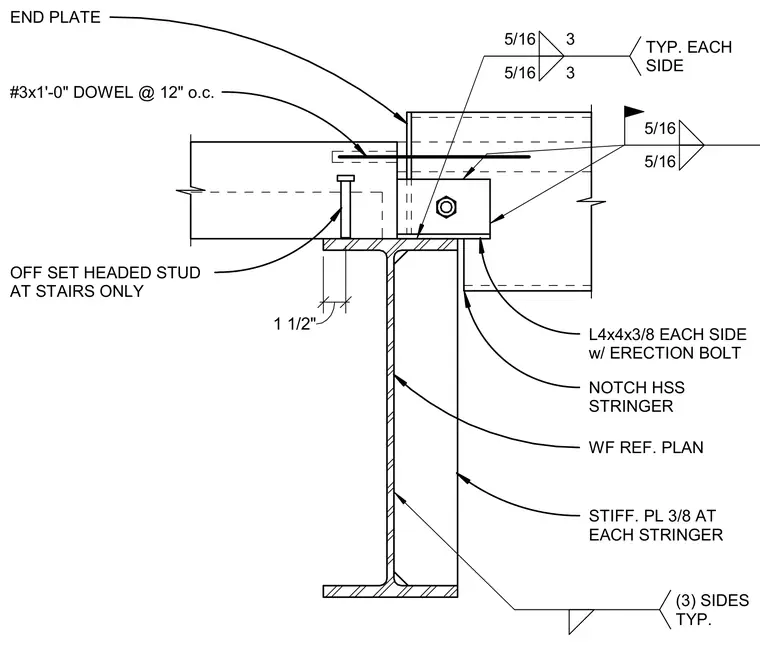

A notched hollow structural section stringer bears onto a wide flange beam and connects via an end plate welded on three sides. An angle measuring four by four by three-eighths inches is provided on each side with an erection bolt. Three-eighths-inch stiffener plates are welded at each stringer notch. Number three dowels spaced at twelve inches on center and offset headed studs at stairs only anchor the concrete slab.
WF REF. PLAN STIFF. PL 3/8 AT EACH STRINGER NOTCH HSS STRINGER END PLATE (3) SIDES TYP. #3x1'-0" DOWEL @ 12" o.c. L4x4x3/8 EACH SIDE w/ ERECTION BOLT OFF SET HEADED STUD AT STAIRS ONLY 5/16 3 5/16 3 TYP. EACH SIDE 1 1/2" 5/16 5/16
