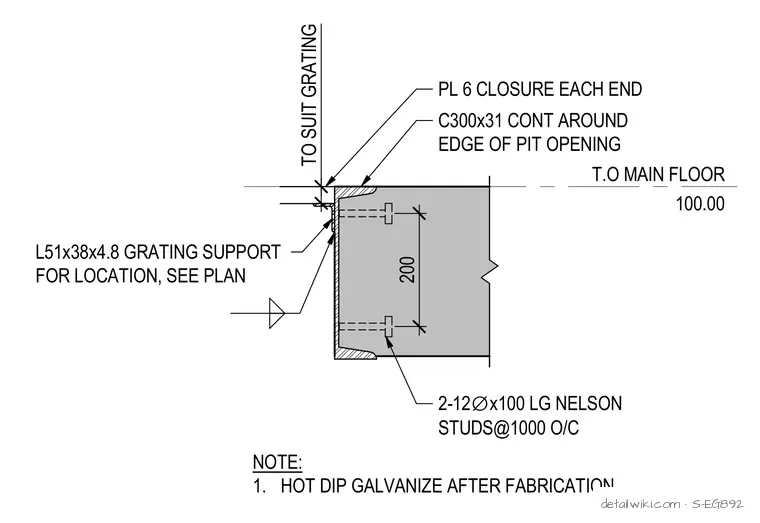

The assembly features a C300x31 channel running continuously around the edge of a pit opening in a concrete slab. The channel is tied back into the concrete using welded Nelson studs spaced at 1000 mm on center. A plate closure and an L51x38x4.8 angle provide the support and edge condition to suit the removable grating.
Text on the drawing
T.O MAIN FLOOR 100.00 PL 6 CLOSURE EACH END C300x31 CONT AROUND EDGE OF PIT OPENING 2-12 ∅ x100 LG NELSON STUDS@1000 O/C 200 NOTE: 1. HOT DIP GALVANIZE AFTER FABRICATION TO SUIT GRATING L51x38x4.8 GRATING SUPPORT FOR LOCATION, SEE PLAN
