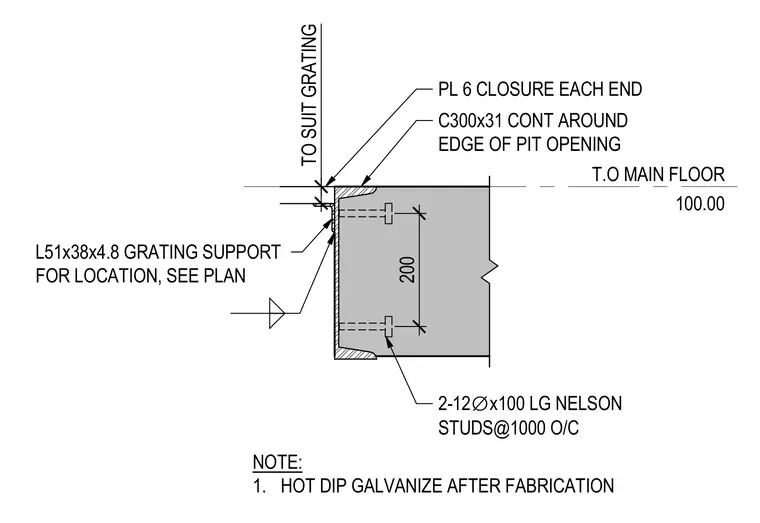

A continuous C300x31 channel frames the edge of the pit opening with six millimeter closure plates welded at each end. Two twelve millimeter diameter by one hundred millimeter long Nelson studs spaced at one thousand millimeters on center anchor the channel to the concrete slab. An L51x38x4.8 angle welded to the channel face provides grating support with location sized per plan. The entire assembly is hot dip galvanized after fabrication.
T.O MAIN FLOOR 100.00 PL 6 CLOSURE EACH END C300x31 CONT AROUND EDGE OF PIT OPENING 2-12 ∅ x100 LG NELSON STUDS@1000 O/C 200 NOTE: 1. HOT DIP GALVANIZE AFTER FABRICATION TO SUIT GRATING L51x38x4.8 GRATING SUPPORT FOR LOCATION, SEE PLAN
