Structural · S-EG6DZ

Steel Wall Plate and Cap Plate Connection Detail

Elements

Connections

About this detail

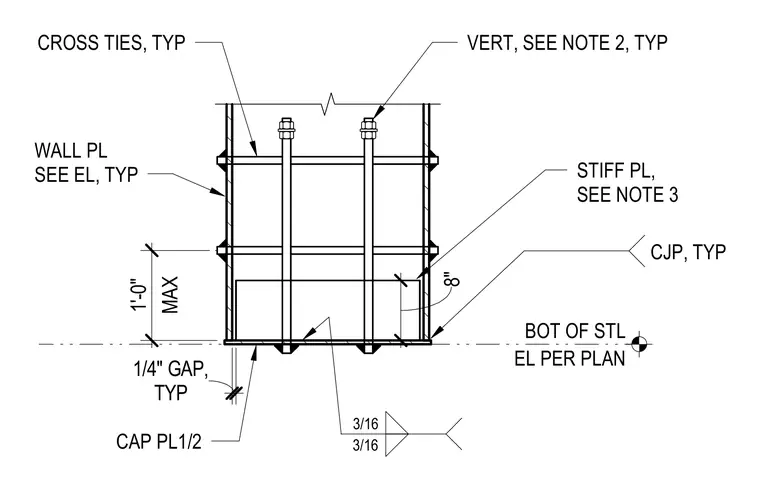

A half-inch cap plate terminates the bottom of the assembly at the bottom of steel elevation per plan, maintaining a typical one-quarter inch gap. Wall plates are welded with typical complete joint penetration welds and reinforced with typical stiffener plates. Internal vertical threaded rods with nuts extend through the assembly, secured by typical cross ties spaced within an eight-inch dimension.
