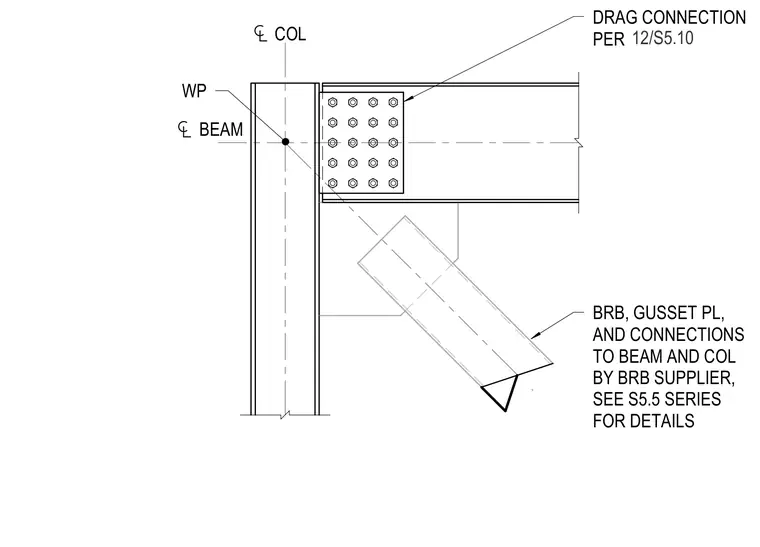

A structural steel diagonal brace frames into the intersection of a column and beam at a work point located on the centerlines of the framing members. The buckling-restrained brace, gusset plate, and its connections to the beam and column are provided by the brace supplier per the S5.5 series details. A bolted drag connection ties the beam flange to the connection assembly per detail 12 on sheet S5.10.
BRB, GUSSET PL, AND CONNECTIONS TO BEAM AND COL BY BRB SUPPLIER, SEE S5.5 SERIES FOR DETAILS DRAG CONNECTION PER 12/S5.10 COL BEAM WP
