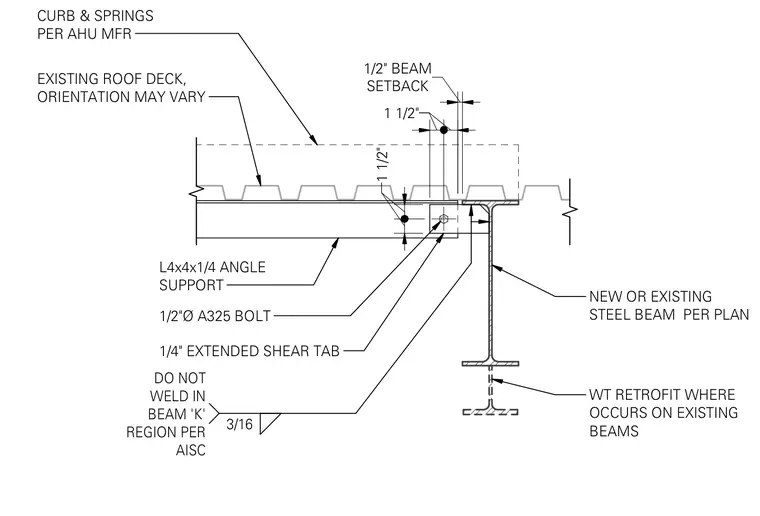

An angle support measuring L4x4x1/4 connects to an existing roof deck and framing. A one-half-inch diameter A325 bolt fastens the assembly with a one-and-one-half-inch beam setback. A one-quarter-inch extended shear tab welds to a new or existing steel beam per plan using a three-sixteenths fillet weld, avoiding the beam k-region per AISC guidelines. A WT retrofit is included where required on existing beams, and a curb with springs is provided per the air handling unit manufacturer.
EXISTING ROOF DECK, ORIENTATION MAY VARY CURB & SPRINGS PER AHU MFR L4x4x1/4 ANGLE SUPPORT 1/2"Ø A325 BOLT 1/4" EXTENDED SHEAR TAB 3/16 DO NOT WELD IN BEAM 'K' REGION PER AISC 1 1/2" 1 1/2" SETBACK 1/2" BEAM 1 1/2" 1 1/2" NEW OR EXISTING STEEL BEAM PER PLAN WT RETROFIT WHERE OCCURS ON EXISTING BEAMS
