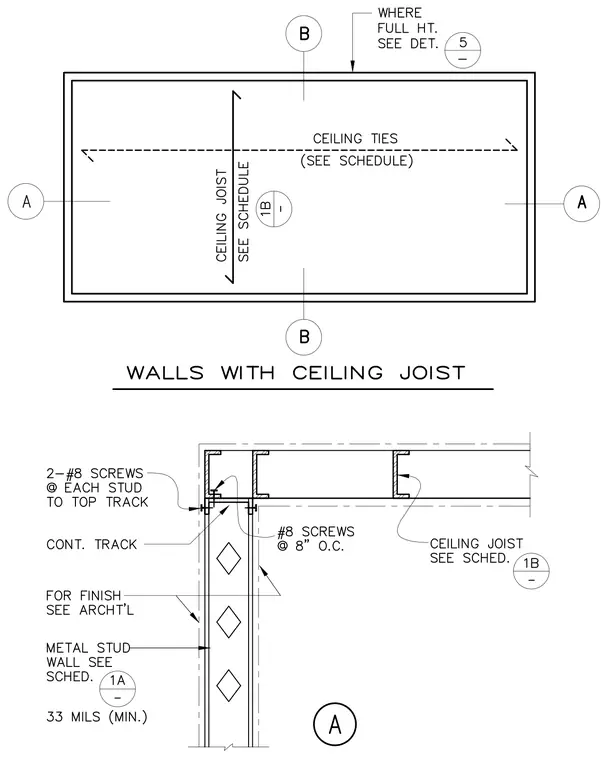

Cold-formed metal framing assembly with a metal stud wall connected to a continuous top track using two number eight screws at each stud. A ceiling joist ties into the top track assembly with number eight screws spaced at eight inches on center. The metal stud wall is specified at thirty-three mils minimum thickness per schedule, with finishes coordinated with architectural drawings.
