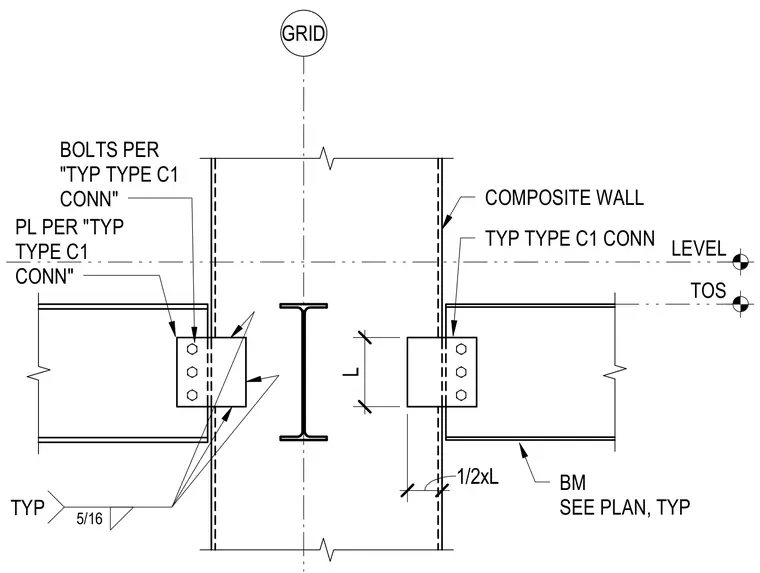

Steel beams connect to a composite wall assembly along a structural grid line using typical type C1 connections. Plates and bolts match the designated type C1 connection details, with connection plates welded using five-sixteenths inch fillet welds. Beams are sized per plan and align with the top of steel level elevation marker.
LEVEL TOS L 1/2xL TYP 5/16 COMPOSITE WALL TYP TYPE C1 CONN BM SEE PLAN, TYP BOLTS PER "TYP TYPE C1 CONN" PL PER "TYP TYPE C1 CONN" GRID
