Structural · S-EF9DJ

Roof Joist Blocking and Pipe Connection Detail

Materials

Elements

About this detail

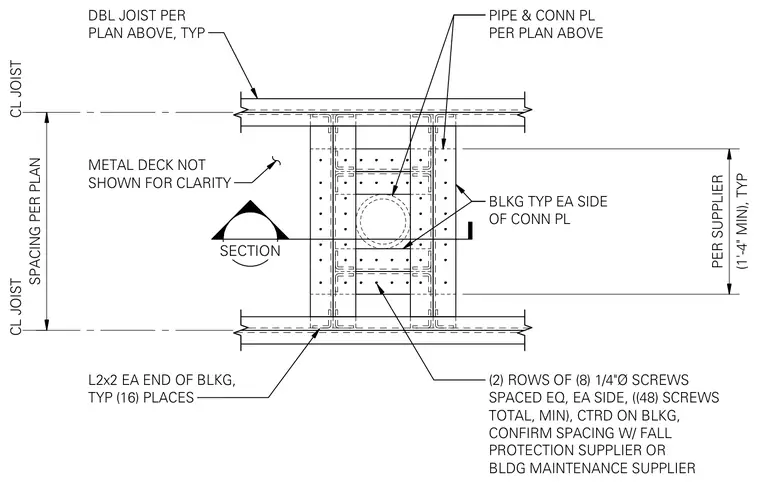

Double joist framing receives a blocking assembly spanning between the members with an engineered pipe and connection plate located per the roof plan above. Cold-formed steel angles measuring 2x2 are placed at each end of the blocking in sixteen total locations. The blocking assembly is secured using two rows of eight one-quarter-inch diameter screws spaced equally on each side, totaling forty-eight screws minimum centered on the blocking. Screw spacing must be confirmed with the fall protection supplier or building maintenance supplier. Metal deck is omitted for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
