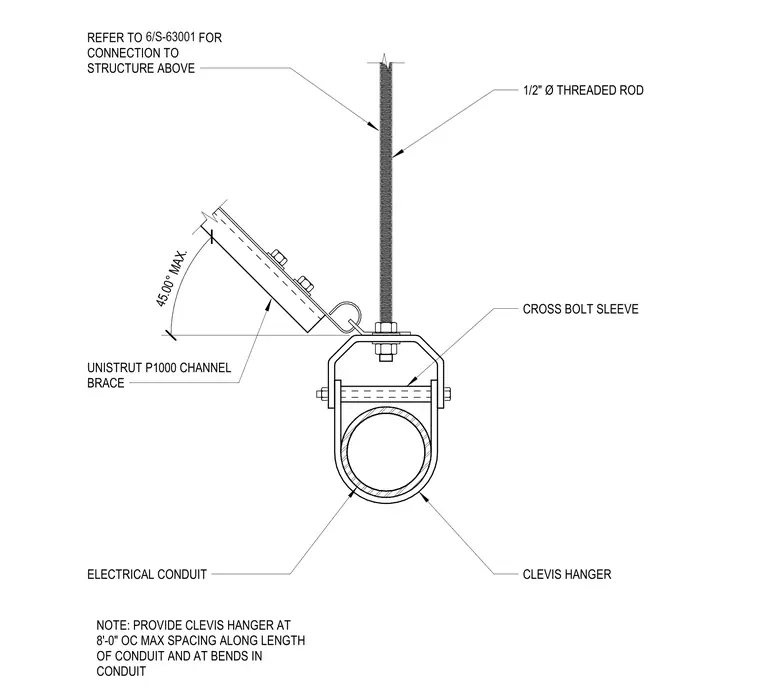

This assembly supports electrical conduit using a clevis hanger suspended by a 1/2 inch diameter threaded rod. The rod connects to the structure above as specified in detail 6/S-63001. A cross bolt sleeve secures the conduit within the hanger. A Unistrut P1000 channel brace is installed at a maximum angle of 45 degrees to provide lateral stability. Clevis hangers must be spaced at a maximum of 8 feet on center along the length of the conduit and at all conduit bends.
Text on the drawing
CLEVIS HANGER ELECTRICAL CONDUIT CROSS BOLT SLEEVE 1/2" Ø THREADED ROD REFER TO FOR CONNECTION TO STRUCTURE ABOVE NOTE: PROVIDE CLEVIS HANGER AT 8'-0" OC MAX SPACING ALONG LENGTH OF CONDUIT AND AT BENDS IN CONDUIT UNISTRUT P1000 CHANNEL BRACE 45.00° MAX. 6/S-63001
