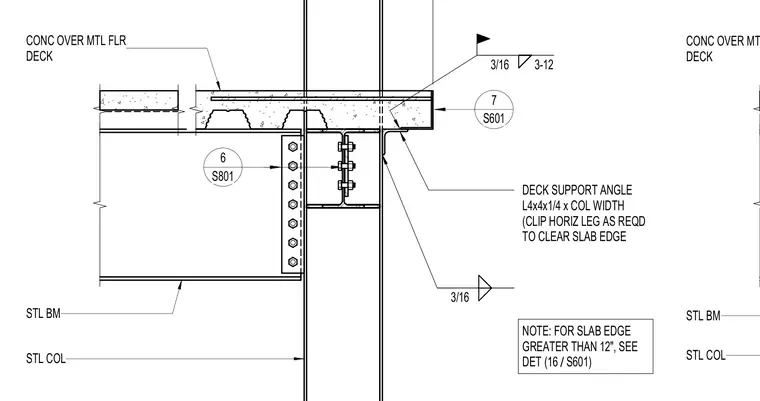

A concrete slab over a metal floor deck terminates at a steel column flange. A deck support angle sized L4x4x1/4 spanning the column width is welded with 3/16 inch fillet welds, with the horizontal leg clipped as required to clear the slab edge. A steel beam connects to the steel column via a bolted shear tab. Notes indicate that for slab edges greater than 12 inches, reference is made to detail 16 on sheet S601.
DECK SUPPORT ANGLE L4x4x1/4 x COL WIDTH (CLIP HORIZ LEG AS REQD TO CLEAR SLAB EDGE STL COL STL BM CONC OVER MTL FLR DECK NOTE: FOR SLAB EDGE GREATER THAN 12", SEE DET 6 S801 7 S601 3/16 3/16 3-12 / (16 S601) STL COL STL BM CONC OVER MTL FLR DECK
