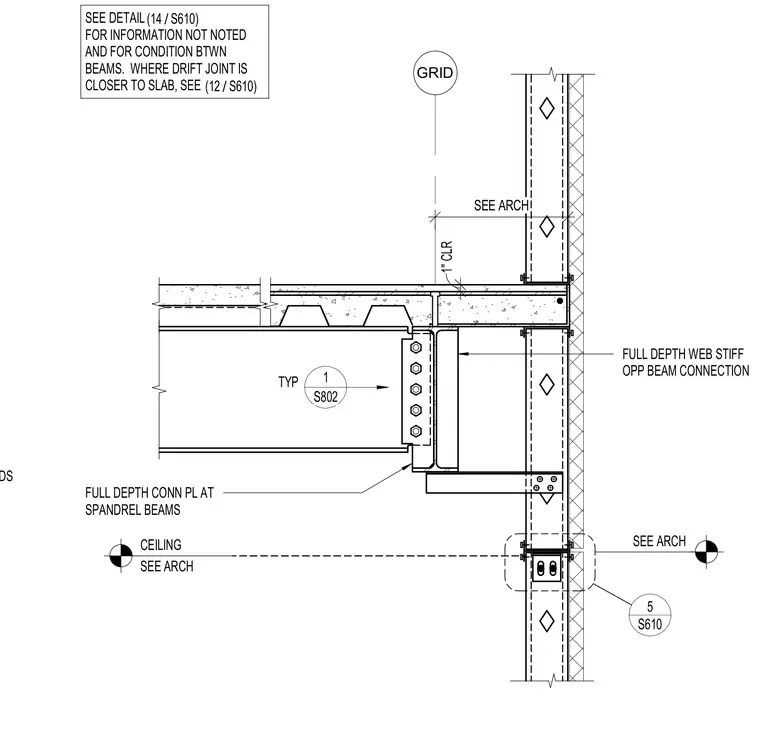

A structural steel beam connects to a spandrel beam at an exterior solid wall utilizing a full-depth connection plate and a bolted web connection. A full-depth web stiffener is installed on the opposite side of the beam connection. A concrete slab on metal deck bears near the spandrel beam maintaining a one-inch clearance from the exterior wall framing. Cold-formed metal studs interface with the floor assembly, and additional connections are detailed for drift joints and ceiling integration.
(SCREWS OR WELD) OF STUDS CEILING SEE ARCH FULL DEPTH WEB STIFF OPP BEAM CONNECTION FULL DEPTH CONN PL AT SPANDREL BEAMS 1" CLR GRID SEE ARCH SEE DETAIL FOR INFORMATION NOT NOTED AND FOR CONDITION BTWN BEAMS. WHERE DRIFT JOINT IS CLOSER TO SLAB, SEE / (14 S610) / (12 S610) S610 5 SEE ARCH 1 S802 TYP
