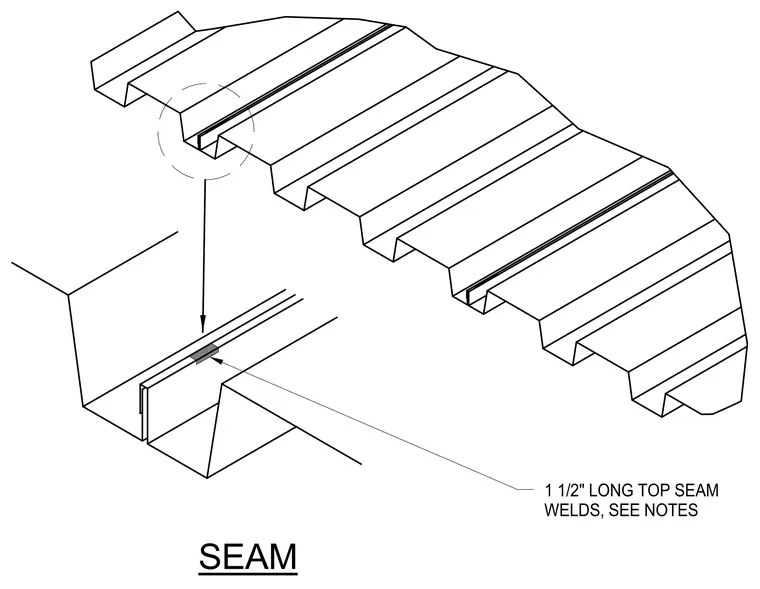

Adjacent steel roof deck panels are joined along their longitudinal side laps using one-and-a-half-inch long top seam welds as specified in the structural notes. The nested side lap profile aligns the metal deck ribs to maintain diaphragm continuity across the roof assembly.
