Structural · S-EENPX

Typical Slab Openings and Edge Framing Details

Materials

Steel

Elements

Floors / Slabs Decks Roof / Floor Openings

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

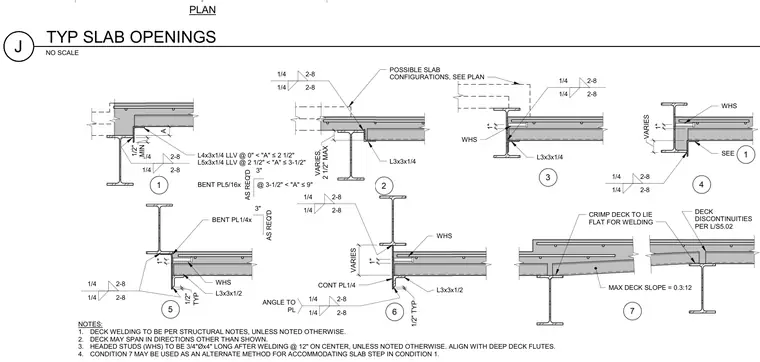

Various edge framing and structural steel conditions for slab openings feature perimeter angles, bent plates, and continuous plates welded to supporting beams. Headed studs measuring three-quarters of an inch in diameter by four inches long are spaced at twelve inches on center and aligned with deep deck flutes. Edge framing for openings larger than five feet is installed per the structural framing plans with specialized angle sizes dictated by dimension gaps. Metal deck is crimped to lie flat for welding, with maximum deck slopes limited to zero point three to twelve.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
