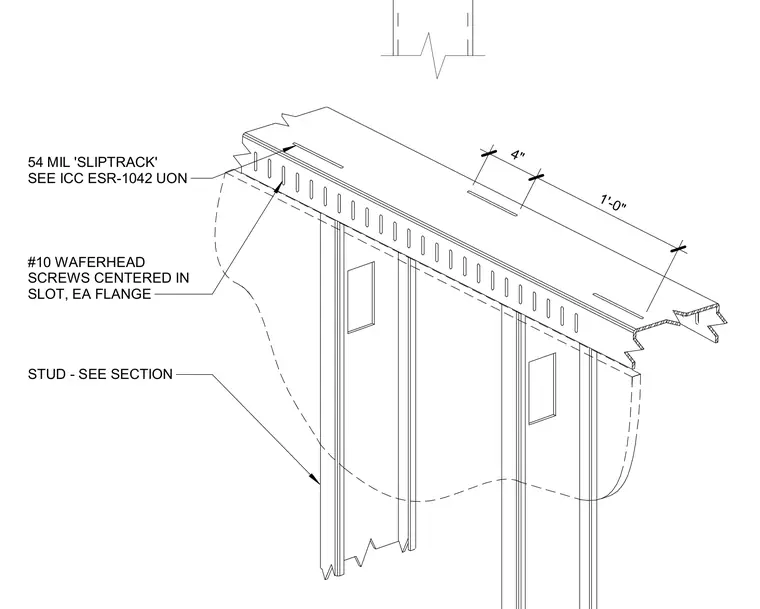

Cold formed metal stud framing connects to a fifty-four mil slip track designed for vertical deflection per ICC evaluation service report requirements. Number ten wafer head screws are centered in the slotted track flanges on each side of the stud. Vertical metal studs are framed below the slotted track with framing sizes sized per structural plans.
4" 1'-0" 54 MIL 'SLIPTRACK' SEE ICC ESR-1042 UON #10 WAFERHEAD SCREWS CENTERED IN SLOT, EA FLANGE STUD - SEE SECTION
